 Automatic Machine For Handing Roving Yarn Ends


<%if not rs_pro.eof and not rs_pro.bof then if int(pageno)=int(countpage) then last=rs_pro.recordcount-1 else last=(pageno-1)*pagesizes+pagesizes-1%> <%end if%> <%for i=begin to last%> <%rs_pro.movenext%> <%next%> <%end if%> <%rs_pro.close set rs_pro=nothing%>

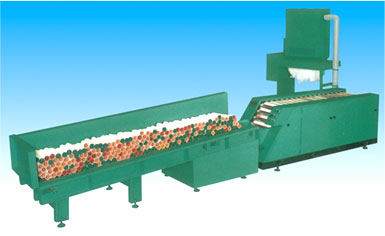

Automatic Machine for Handing Roving Yarn Ends BT88-03
1, The machine is designed to handle 14 pcs. of roving yam ends in the same time.
2, The feeding conreyor has two section it,s former sectoin is for low speed feeding and the latter section is for high speed feeding of roving yam ends.
3,The funnel which is on the front of the handing machine are able to dajust and control the speed of feeding pipe.
4.The speed of strpping roller has two steps can adjsut as require.
5.After coare yam being strpped,it will be cinveyed by blowing to auto fiber exhausing machine to perssed by double-rolle,With electric sensor control,thus will be easier to storager.
6,After roving yam been stripped,it will conveyed to empty bobbin saorager.
7,While all coarse yam been treated and no coarse yam are feeding machine will stop automatically.
DIMENSIONS:See the figuring of machine
Auto fiber exhausting machine with electer senson control to operation

The machinge is 5pcs removable Bar for managing large dia roving ends.

A,Energy:Max.1800PCS/H
B,Power supply:3øAC220V(380V OR 440V)Framed youself
C,Horsepower:0.2kw×2,0.4kw×3,1.5kw×1
