 Kirschner Opener EV-1.EN-1.E3


<%if not rs_pro.eof and not rs_pro.bof then if int(pageno)=int(countpage) then last=rs_pro.recordcount-1 else last=(pageno-1)*pagesizes+pagesizes-1%> <%end if%> <%for i=begin to last%> <%rs_pro.movenext%> <%next%> <%end if%> <%rs_pro.close set rs_pro=nothing%>

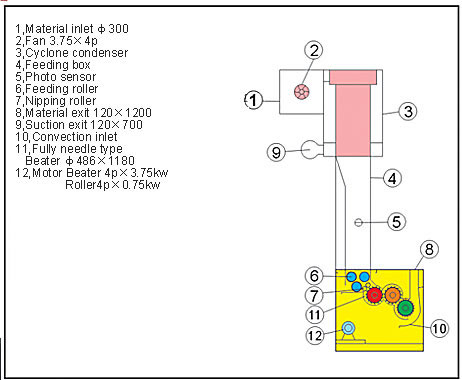

Opener Ev-1 The preopener offering maximum fibre protection
The Opener with its 6 legsspiked roll is used as a preopener preceding a fine opener or is applied as an individual machine in cases where only a low opening action is necessary or desirable.

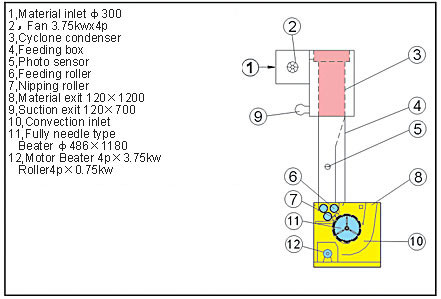

Pener EN-1 The ideal opener for feeding cards and roller cards
In contast to the Pre-opener EN-1 the Fine Opener En-1 is equipped with a needle roll. It this performs a more thorough opening action. In combination with the Preopener Er-1 practically all man-made fibres can be opened suitable for carding on flat cards.

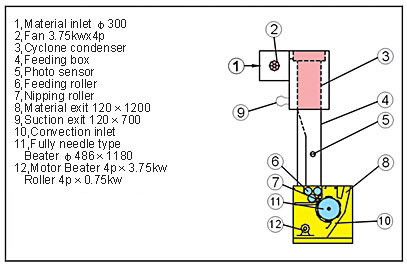

Opener E-3 The opener for the Wadding Industry
The 3-roll Opener E-3 is equipped with one fully spiked roll and two different saw-tooth rolls. With this Opener the fibres are transferred from roll to roll with very gentle treatment and without fibre breakage.This is achieved by precise graduation of the roll clothing and by the different peripheral speeds of the opening rolls. Furthermore the machine is suitable for all cases where a high degree of opening of opening of the material is necessary,The Opener E3 has also proved its effectiveness in those spinning mills and non-woven plants where the material is particularly diffcult to open.


SPECIFICATION
Capacity:600kg/hr
Power:8.25kw
LxWxH: 1200x1640x3900mm
Working width: 1200mm
Demand quantity of suction:4200m3/hr-75mmw-c
