 Super Cleaner CI.CIII


<%if not rs_pro.eof and not rs_pro.bof then if int(pageno)=int(countpage) then last=rs_pro.recordcount-1 else last=(pageno-1)*pagesizes+pagesizes-1%> <%end if%> <%for i=begin to last%> <%rs_pro.movenext%> <%next%> <%end if%> <%rs_pro.close set rs_pro=nothing%>

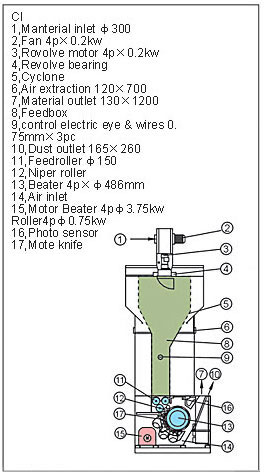

Cl
The cleaner CI,with a coarse fully-spiked roll is the first cleaner in the Iow grade cotton line where the material is beaten whilst it is gripped.As well as the removal of coarse and medium-sized trash particles,it opens up the cotton to a high degree. The degree of opening is ideally suitable for feeding to fine cleaner,i.e.the find cleaner in the line.

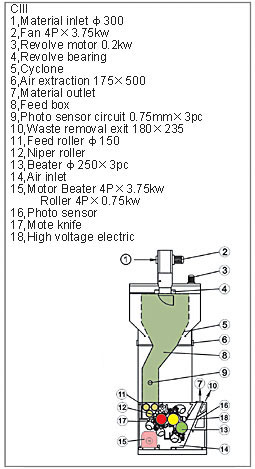

CIII
The machines have wide range of application as fine cleaners.The super cleaner CIII can be used alone,for a very short compact line for processing cottons with a all kinds cotton.As a fully-spiked roll is used ot the first cheaning position,it is alos possible to feed less well opened material.
Controlled material flow for optimum opening and maximum clleaning Completely dust free operation due to excellent air separation is the patented lamina chute Continuous production control Controlled amount of waste thanks to adjustable knife grid with fiber guide plates Intense cleaning without damaging fibers and loosing good fibres



SUPER CLEANER CIII
The cleaners C-Ill in a very gentle way. The cotton passes only through the feed rolls. With conventional cleaning installations,this happens at each cleaning stage.The transfer of fibres from one cleaning roll to the next in the cleaners is carried out very gently. Due to the drafts and the increasingly fine surfaces,there is no chance of fibre damage.
HEIGHT VOTAGE ELECTRIFY DEVICE for fiber transfer to next roller neary 100%.

SPECIFICATION
MAX capacity:600kg/hr
Power:4.45kw
L×W×H: 1200×1640×4200mm
Working width:1200mm
Demand quantity:4200m3/hr-75mmw-c
Dust collectJng:3600m3/hr-80mmw-c
