SPARK CATCHER RS-2
When spark is caused on the carrier or dust collecting duct during the processes of blowing machine or card because or iron piece.nail or stone mixed in the raw cotton,this sensor shall deter the spark and output.the evree is composed of sensor and amphlier unit.it is,capable of catching the brightness of joss stick of F2 from the position approximately 1.5m away. |
|
AMP UNIT
Supply voltage |
DC24V 10% |
Power consumption |
0.3A |
Destection speed |
0.1m/sec-20mm/sec |
Control output |
40m/sec Ac250V 3A COS F=1 | |
|
|
|
METAL EXTRACTION MD-300 It can separate the gold,silver, copper iron,aluminum, magnetism or unmagaetism metal.And etc. Diameter: f200-350mm Extraction speed:50M/s up Sencitive accuracy: f6mm's steel ball.(it can be adjusted.

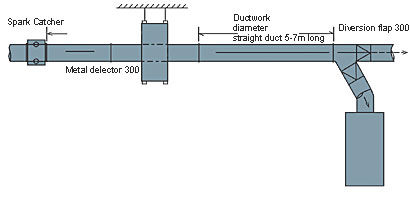

Mode of operation The Metal Extractor, fitted in the feedstock conveying duct,detects metallic particles either freely transported or enclosed in fibre tufts,withoutimpeding the flow of material.When a foreign object of kind passes the detector, a diversion flap is operated automatically, leading the piece of metaltogether with the material transported at this time-into a special collecting device.
Technical data place of installation:-after the A.B.O.M.or other bale breaking machine-before the machine supplying the pneumatic chute feed. |
|
|
|
