High and flexible production The A3000 is suitable for processing all raw materials,beit coffon of any kind man-made fibres up to 125mm orcoffon type flax. On each side can be weo bale groups,also of different heighrs,can be processed. Permanently small furls 10-50rug are produced and the impurities exposed.
|
|

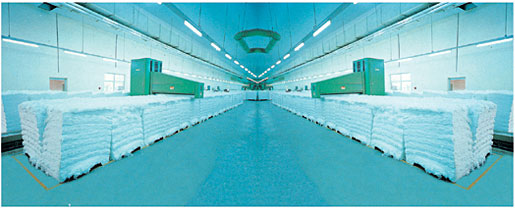

Up to 200 bales in the lay-down With a working width of 2100mm and a standard machine length of 30metres,60 bales can be accommidated. The A3000 XL with 2200mm width,60m machine length even accommodates up to 200bales. Assuming a cleaning line production rate of 1200 kg per hour, this allow unattended operation for 60 hours.
|
|
|
|

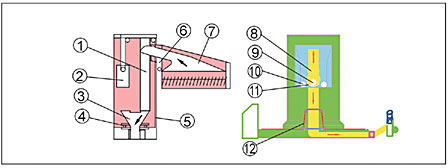

1, |
Duct |
7, |
Cotcher roller |
2, |
Weight |
8, |
Air guide |
3, |
Joint piping |
9, |
Catcher roller |
4, |
Bearing |
10, |
Pressure roller |
5, |
Up-down rail |
11, |
Guard |
6, |
catcher set support |
12, |
Conveyor |
|
The commander CPC controls the operation of rheA3000 and monitors all its functions. Monitor visualizes all the production operations and shows up any possible malfunctions. Operation and monitoring are geratly simplified due to this control system. The CPC monitor can display ijformation in many languages. |
|
| |
|

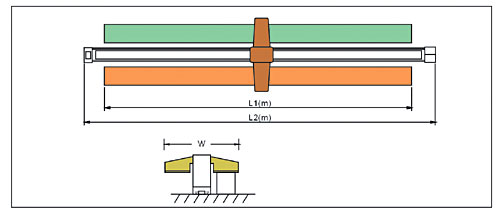

L2 |
18 |
20 |
23 |
25 |
28 |
30 |
33 |
35 |
38 |
40 |
43 |
45 |
48 |
50 |
L1 |
14 |
16 |
19 |
21 |
23 |
26 |
28 |
31 |
33 |
36 |
38 |
41 |
43 |
46 | |
Machine type |
A3000S |
A3000L |
A3000XL |
Working with |
1600-1800mm |
2100mm |
2300mm |
Production pate |
800kg/hr |
1000kg/hr |
1200kg/hr |
Installed power |
5kw |
6.8kw |
6.8kw |
Transport fan |
5.5kw |
5.5kw |
5.5kw |
Air |
6000m3/hr |
6600m3/hr |
6600m3/hr |
Machine width |
4960-5360mm |
5960mm |
6360mm |
Height |
3000mm |
| |
